Frame relay Dynamic & Static Map

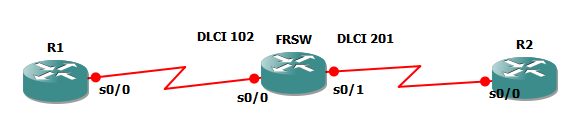

Ditopologi ini R1 dan R2 terhubung ke frame-relay switch, kemudian menggunakan dynamic mapping.

masalah teorinya nanti dulu, klo sempet ya tak tulis :)

Konfigurasi di R1
int s0/0
encapsulation frame-relay
ip add 12.12.12.1 255.255.255.0
no sh

Konfigurasi di R2
int s0/0
encapsulation frame-relay
ip add 12.12.12.2 255.255.255.0
no sh

Konfigurasi Frame-relay Switch
Int s0/0
encapsulation frame-relay
frame-relay intf-type dce
frame-relay lmi-type cisco
frame-relay route 102 interface s0/1 201

int s0/1
encapsulation frame-relay
frame-relay intf-type dce
frame-relay lmi-type cisco
frame-relay route 201 interface s0/0 102

verifikasi :

Sekarang kita coba frame-relay static mapping
R1
int s0/0
frame-relay map ip 12.12.12.2 102 broadcast

R2
int s0/0
frame-relay map ip 12.12.12.1 201 broadcast

kita check statusnya :
